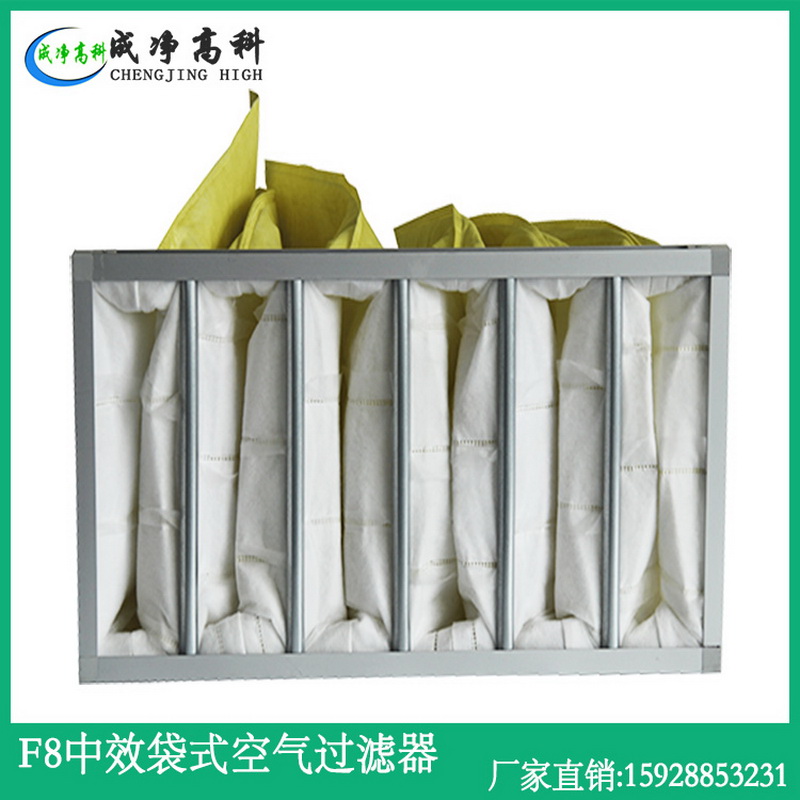

Air filter bag in effect
特点Features
●可重复使用多次
●阻力小、风量大
●广泛运用于空调系统的中级过滤
●Adopts reusable times
●Responding to small resistance, air
●Widely used in air conditioning system of intermediate filtration
构成材料及运行条件
Materials and operating conditions
●框材：铝合金或镀锌板外框
●External frane：Aluminum alloy steel or frame
●滤料材质：新型复合无纺布
●Filter material: new composite nonwoven fabric
●滤料颜色：F5(白色)45%（浅黄色）、F6(绿色)65%（桔红色）、
F7(粉红色)85%（紫色）、F8(浅黄色)95%（深黄色）
●Liao color: The F5 (white) 45% (yellow), F6 (green) 65% (orange),
F7 (pink) 85% (purple), F8 (yellow) 95% (deep yellow)
●密封条：醋酸乙酯
●Gasket：EVA
●使用温度、湿度：80℃、80%以内
●Use the highest temperature, humidity：80℃、80%
型号尺寸及其他参数
Standard specification
型号
model
外形尺寸
Outside Dimensions
(mm)
额定风量
Rated air flow
(m3/h)
初阻力
Initial resistance(Pa)
效率（级别）
Efficiency
(class)
滤料颜色
Liao color
袋数
pockets
CJ-M1-D1
495×295×500mm
20″×12″×20″
1000m3/h
50Pa F5
55Pa F6
60Pa F7
65Pa F8
40-50% F5
60-70% F6
75-85% F7
85-95% F8
（比色法）
colorimetric
白色F5
White
绿色F6
Green
粉红F7
pink
浅黄F8
yellow
5
CJ-M1-D2
495×495×500mm
20″×20″×20″
1800m3/h
5
CJ-M1-D3
595×295×500mm
24″×12″×20″
1300m3/h
6
CJ-M1-D4
595×495×500mm
24″×20″×20″
2200m3/h
6
CJ-M1-D5
595×595×500mm
24″×24″×20″
2600m3/h
8
CJ-M1-D6
495×295×600mm
20″×12″×24″
1200m3/h
5
CJ-M1-D7
495×495×600mm
20″×20″×24″
2200m3/h
5
CJ-M1-D8
595×295×600mm
24″×12″×24″
1600m3/h
6
CJ-M1-D9
595×495×600mm
24″×20″×24″
2700m3/h
6
CJ-M1-D10
595×595×600mm
24″×24″×24″
3200m3/h
8
*可要据用户要求定制不同规格型号的过滤器
According to user requirements to customize different specifications and types of filters
